Liners for silo's/tanks

DelafleX. To make a silo watertight, it must be provided with a liner / lining. We produce these high-quality liners in our own Dutch factory. We will always continue to do this to be able to continue to guarantee quality control. The liners are packed in high-quality stackable boxes to prevent damage in transit. DelafleX is in most cases the best material to use as a silo liner. This Polyofine material is very strong in tensile strength and flexibility that makes striking damage a thing of the past. And with a very high UV resistance and very long life expectancy (+15 years). DelafleX's resistance to fertilizers, chlorine, salts and other aggressive products is very high. DelafleX is also available with an official drinking water certificate on request. So DelafleX is available in full food grade, a trend that we are seeing more and more in the food industry. Rightly so. We also supply reinforced PVC, EPDM, LDPE, HDPE in various thicknesses, on request.

PVC Siloliners:
Rainwater/clean water

A PVC Tankliner suitable especially for the storage of drinking water. This foil does not emit any substances to the drinking water in quantities harmful to public health.

A PVC drinking water Tankliner consists of the following components:

  1. PVC drinking water quality foil, 0.5 or 1mm thickness
  2. Wall protection covering 300 gram
  3. Cord for easy fastening
  4. Reinforced edge with eyes every 50 cm
  5. Clamping strip for protection

Siloliners rain/cleanwater, waste water, water with fertilizers, water with high or low EC/PH

After years of research there is developed a new flexible Liner which viewed on the test results is better suited for these applications. The test results show us that this extremely high quality material is better resistance against influence of UV (Sun) light and more resistant to high mechanical stress and more resistant against damage due to wind. We introduce the revolutionary DELAFLEX® Lining with 15 years warranty. Made for all types and brands of tanks or silos. DELAFLEX® Lining is available in 0.6 mm and 1.0 mm thickness and DELAFLEX® is welded in accordance with guidelines of the KIWA BRL-K 537.

This tankliner consists of the following materials/parts:

  1. Thickness available in 0.6 mm and 1 mm
  2. Wall protection covering 250 gram
  3. Polyester tensioning
  4. Per max. 8 m circumference 1 ratchet tensioner
  5. Clamping strip

EPDM Siloliners:
Rain/cleanwater, waste water, water with fertilizers, water with high or low EC/PH


This siloliner consists of the following materials/parts:

  1. Epdm thickness 1 mm
  2. Wallprotection covering 250 gr mtr2
  3. Polyester tensionering
  4. Per max. 8 m circumference 1 ratchet tensioner
  5. Clamping strip

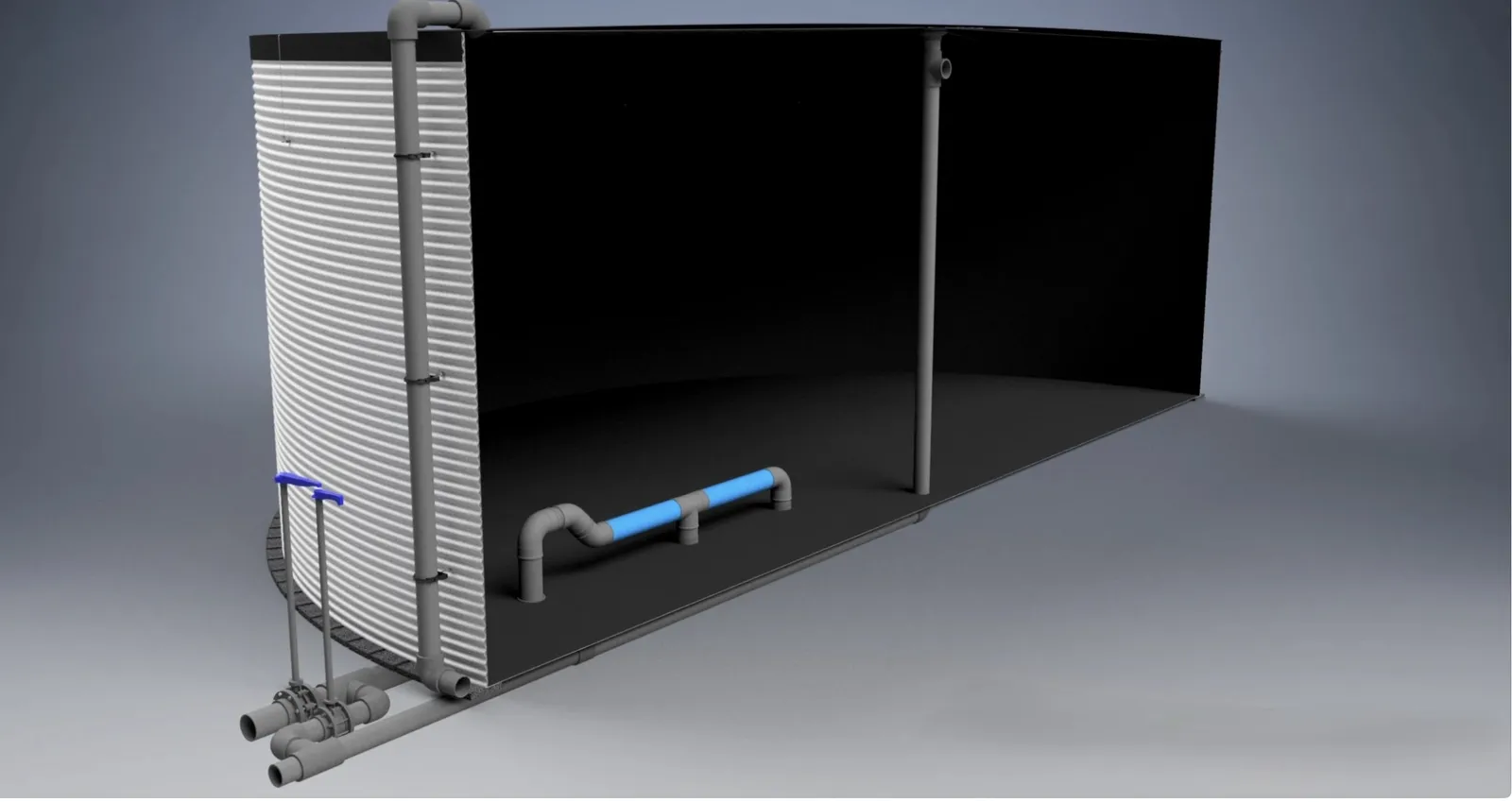

Pipe transits/outlet´s


In accordance with the client's wishes transit pipes and or seeling rings of varying diameters can be fitted into the Tankliner or supplied separately. In the latter case assembly kits will supplied. Should at any time unforeseen damage occur to your Tankliner, you can order kits from us so that you may carry out repairs yourself.
